Description
F20 PPV: Maximum Output, Zero Field Constraints
The F20 PPV pushes a massive free airflow of 32,470 m³/h. In real-world conditions, that translates to an ISO 24660-certified 18,040 m³/h, with enough power reserve to hit 19,090 m³/h in Boost mode. The goal is simple: deliver strong, reliable ventilation exactly when the environment demands it.
Under the Hood: Flexibility and Endurance
This fan’s performance relies on a brushless DC motor built to run at full throttle while saving you from endless maintenance routines. The power setup adapts instantly to your operational constraints on the ground. For immediate, cordless deployment, just snap in a standard tool battery (Bosch, Makita, or Milwaukee). If you’re looking at an extended operation instead, you can instantly switch over to a 230V mains connection.
Built for Action
Despite its power, the unit remains highly portable and easy to maneuver thanks to its wheeled design. We built the rugged aluminum frame to take a real beating. In fact, it comes equipped with specific frame bumpers to make dragging it up stairwells significantly easier, along with an ergonomic grip and a built-in air temperature gauge. Finally, directing the draft takes just seconds using a 12-position tilt mechanism covering up to 180 degrees.
Characteristics
Compatible with Bosch ProCORE 18V, Makita XGT 40V, M18 Forge 12Ah
Airflow according to ISO 24660:
– 18 040 m3/h @ 100%
– 19 090 m3/h @ Boost Mode
– Free Airflow: 32 470 m3/h
– Autonomy: 45 min
– Autonomy with Boost : 30 min
-Weight without batteries: 25 kg
– Dimensions W x H x D (mm) : 665 x 700 x 320
– Motor: Brushless 775 W
– Noise: 83 dBA @ 1 m
– IP rating: IP65
– Power cable: 0,5 Meter
Advantages
– 5 years warranty (Batteries 1 year)
– EyeWall Airflow Technology: the cylindrical airflow allows a variable distance of 2 to 6 meters in front of the opening.
– Lightweight: only 25 kg without batteries
– Robust construction: High-Quality workmanship
– 45 Minutes operating time when powered by batteries.
– Battery level indicator and low battery warning
– Airflow according to ISO 24660
– Foldable control panel with display

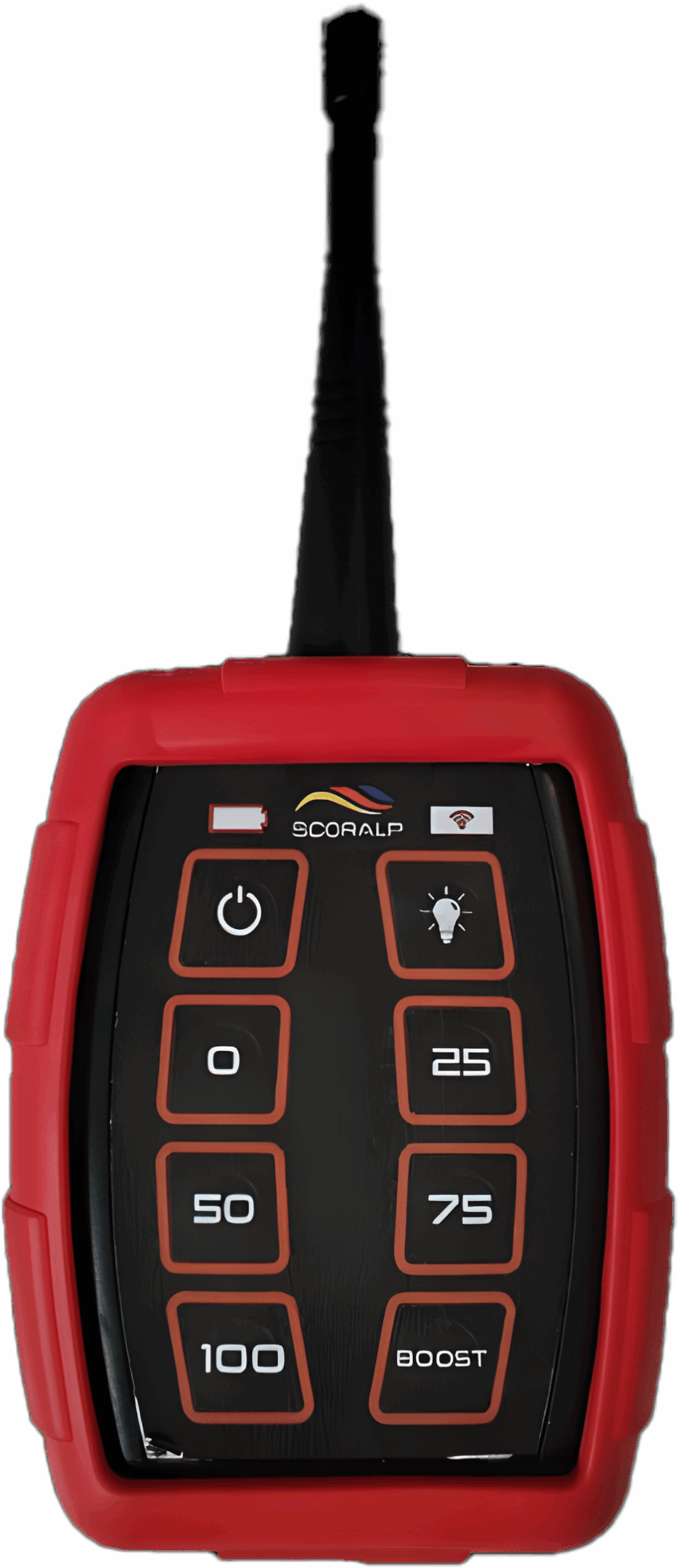

– Wireless remote control (optional)
– Powerful LED lighting

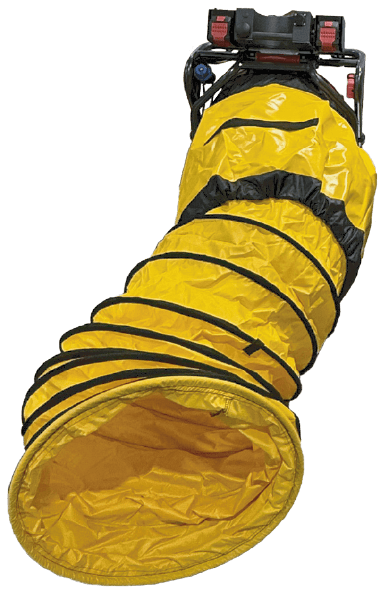

– Wide range of accessories: batteries, chargers, duct, carrying strap, water mister, etc.
– Easily interchangeable battery racks (e.g., when changing batteries brand)
Accessories
