Description
ONE KIT. MULTIPLE RESCUE FUNCTIONS.
Pry | Pierce | Cut | Chop | Pull | Split
Portable equipment for demanding rescue operations
A versatile, manually operated system combining interchangeable special-steel tool heads with extension handles. Designed to support emergency access, controlled dismantling and rescue tasks without dependence on powered equipment.
INTERCHANGEABLE HEADS | FUNCTIONS & FIELD APPLICATIONS
AXE HEAD
Chops wooden doors, frames and panels; pointed section can pierce thinsheet metal.
CUTTING PLIERS
For cutting steel rebar up to 8 mm diameter (manufacturer claim) and thinsheet metal.NAIL PULLERExtracts nails and provides leverage for opening or displacing padlocks andfixings.

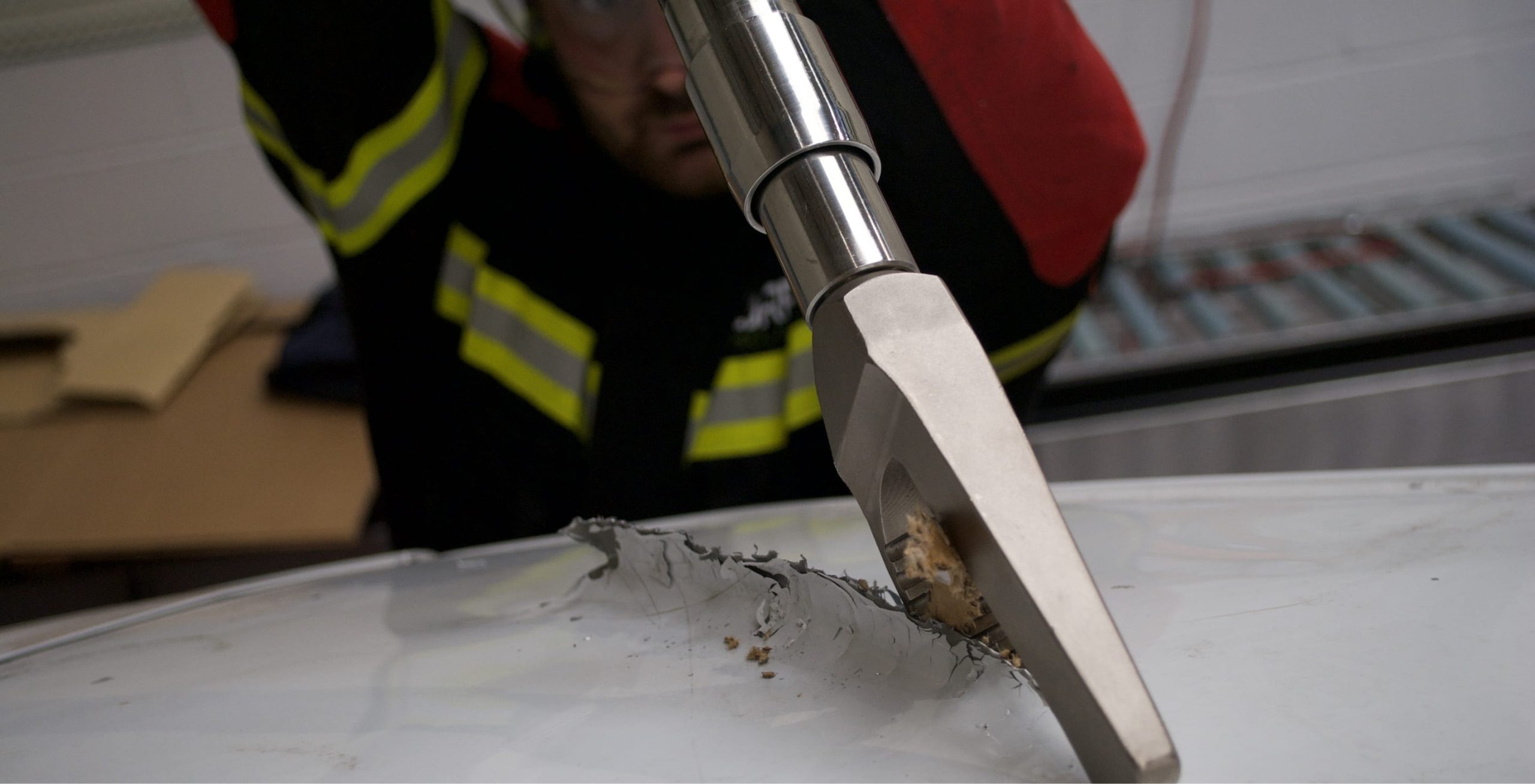

METAL CUTTER
For opening thin exterior sheet metal on vehicles or aircraft in suitable rescue situations.
CROSS-POINT CHISEL
Concentrates force to pierce thin metal panels and create an initial opening.
SMALL PRYING HEAD
Provides localised leverage in tight gaps, door edges and confined spaces.
LARGE PRYING HEAD
Offers a longer working reach for shifting obstacles and opening larger gaps.
CONNECTING ROD & EXTENSIONS
Connects long and short rods for greater reach and leverage; quick-change interface.
COMPASS
Basic orientation aid for field deployment (listed in manufacturer documentation).
Characteristics
CARRY BAG DIMENSIONS: 580 x 380 mm
COMPONENT
Pointed conical head : 0.60 kg | 68 diameter × 106 mm
Combination flat / pointed head: 0.66 kg | 123 × 120 mm
Forked nail-pulling head: 0.70 kg | Length 158 mm
Cross-point chisel head: 0.84 kg | Length 194 mm
Wide blade / axe head: 1.26 kg | 193 × 38 mm
Curved pry / pulling head: 0.62 kg | Length 156 mm
Flat chisel head: 0.76 kg | 170 × 40 mm
Extension handles (each): 0.88 kg | Length 360 mm
Advantages
BUILT FOR MULTI-SCENARIO RESPONSE
FORCIBLE ENTRY
Pry doors, lift edges, remove fixings and breach selected lightweight barriers.
ROAD TRAFFIC RESCUE
Access or peel back thin vehicle panels where manual methods are appropriate.
URBAN SEARCH & RESCUE
Remove light obstructions, open access points andsupport work in restricted spaces.
FIRE & EMERGENCY RESPONSE
Rapid manual access, small-scale demolition and utility operations on scene.
KIT FEATURES
- Special-steel interchangeable tool heads
- Quick-change locking connection
- Long and short extension rods
- Multiple users can deploy components in parallel
- Protective transport bag: 580 x 380 mm
QUICK-CONNECTION PRINCIPLE
Fit the selected head into the rod connection and rotate right until the locking sleeve returns to position. To remove, retract the knurled sleeve and turn the head left. Connect extension rods with the connecting rod as required.
