Description

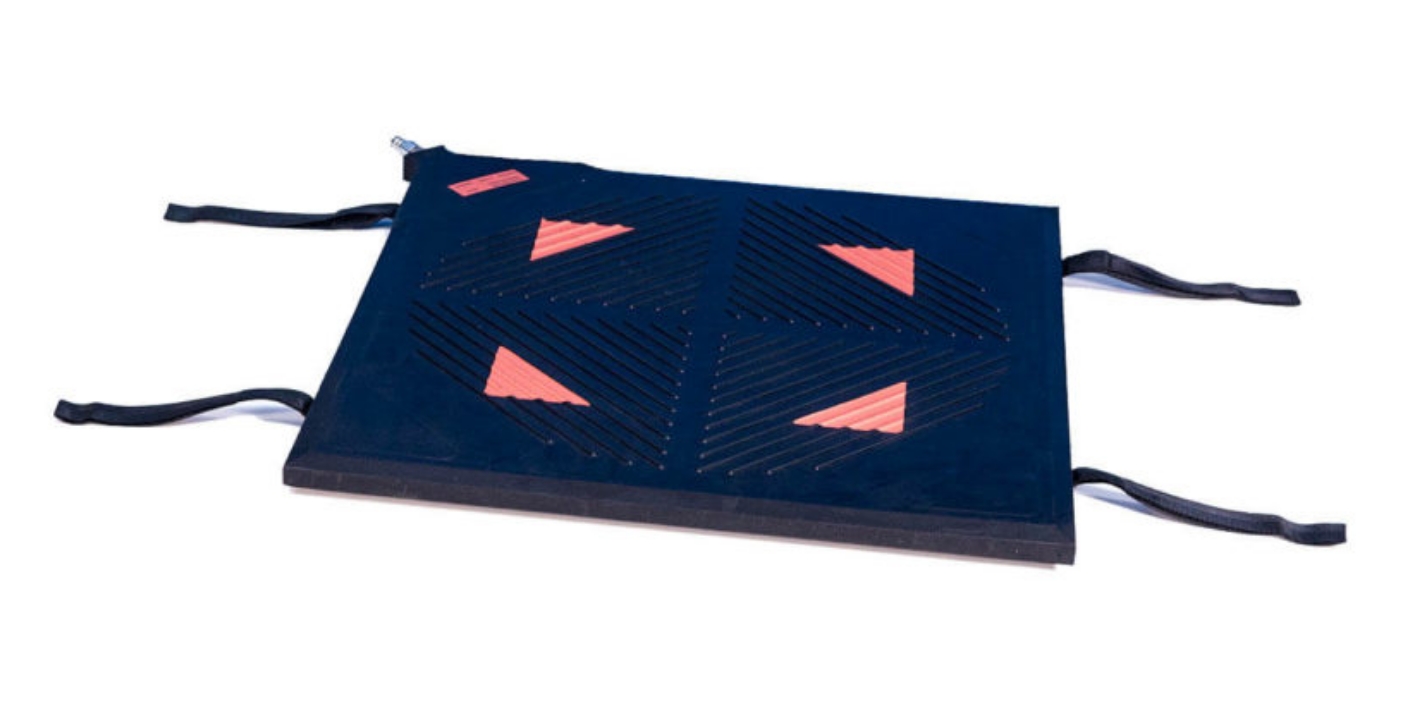

This range of low pressure lifting bags was designed for any operation requiring emergency cushions with large lifting capacity and great stroke.
This range is available from 3T to 12T and the working pressure is 1 bar.
Their constant lifting capacity and low thickness will be a great benefit to all relief operations for road, air and rail accidents, on building sites, or natural disasters, and this, on any type of soil.
Their cylindrical shape gives them great stability.
Characteristics
| MODEL | Diameter (mm) | Race (mm) | Thick (mm) | Weight (Kg) | Pressure | ABILITY LIFTING MAX (Tonnes) | VOLUME AIR AT 10 BARS (Litres) |
|---|---|---|---|---|---|---|---|
| 3T | 610 | 430 | 50 | 3 | 1 | 3 | 266 |
| 5T | 760 | 590 | 50 | 4 | 1 | 5 | 570 |
| 7T | 910 | 610 | 70 | 7 | 1 | 7 | 840 |
| 12T | 1220 | 1000 | 100 | 13 | 1 | 12 | 2475 |
Advantages
– 4 different models available with 4 handles for easier handling ranging from 3 to 12 tons and with a large stroke ranging from 430 to 1000 m.
– Only 5 cm thick for easy insertion in tight spaces.
– Low pressure system (1 bar).
– Nitrile compound for high resistance to hydrocarbons.
– The lifting force is constant throughout the deployment.
