Description
ACCESSORIES:
– Water Mist System, 60l/min at 7 bar magnetic connection to the front grill of the fan.
– Water Mist System, 200l/min at 7 bar magnetic connection to the front grill of the fan.
– Foam device for high expansion foam production, including 4 straps to fix the foam device on the frame of the fan.PLEASE NOTE: the water mist system 200l is additionally necessary for foam production in combination with this foam device!
– Smooth bore duct Ø490mm, to use in combination with the foam device Smooth bore duct for 16″ and 18″ (Ø490mm), 20m.
– Coupling band, to fix the smooth bore duct on the foam device.
– Ventilation hose Ø 450mm, 5m, yellow, one side incl. mounting strap to fix the hose on the fan.
– Canvas cover for fan.
Characteristics

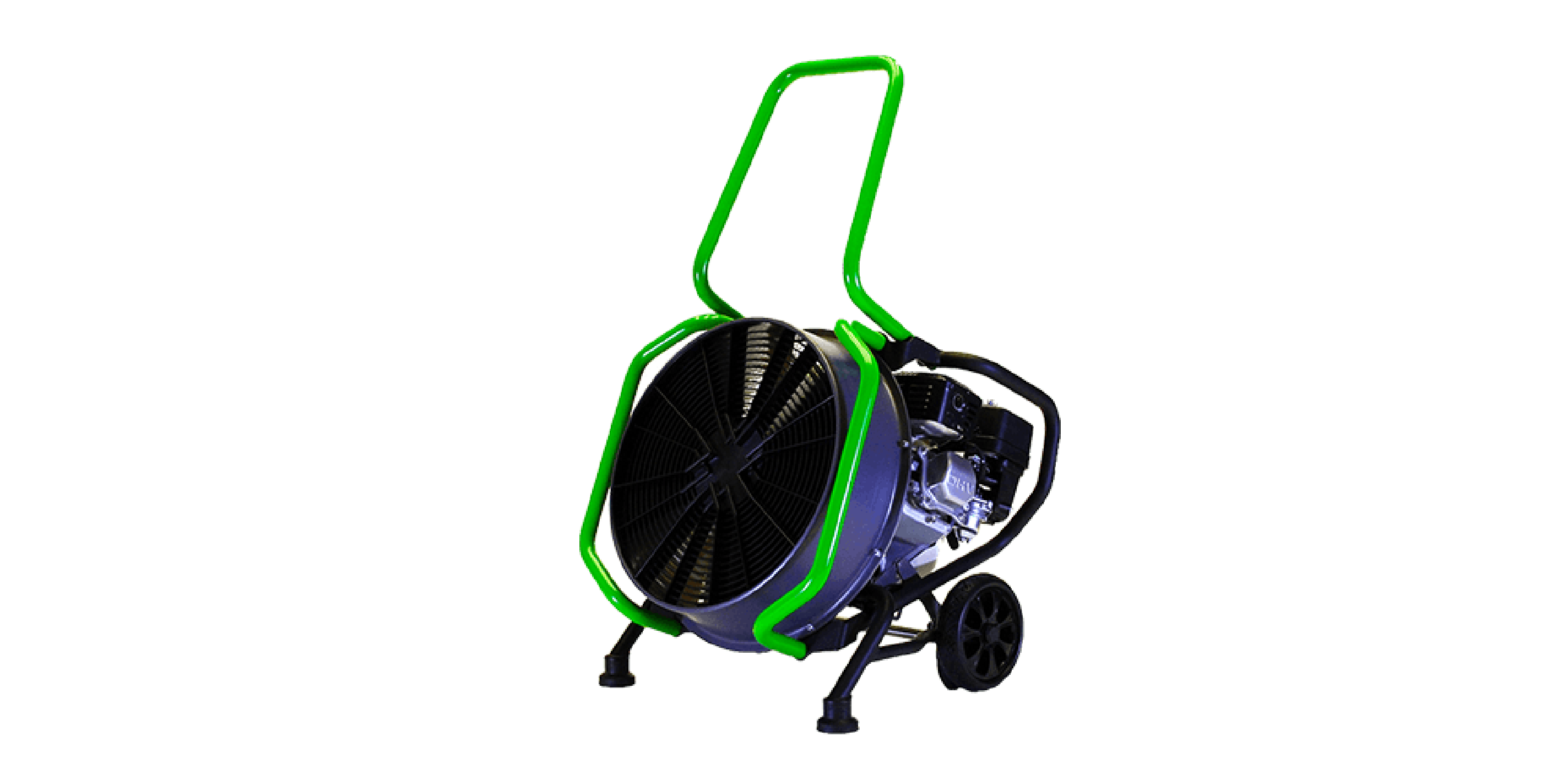

EVS-S
Drive Speed: Electric / Single Speed
Engine Power: 1,5 Kw
Air Output effective: Approx 36 000m3 / h
Engine: 230V / 50Hz
Material of Housing & Blade: Aluminium
Number of blade: 8
Tilt Angle: +35° / -20°
Dimension (w x h x d): 51 x 55 x 48 cm
Autonomy Time: 24H With electric powered
Weight: 28 Kg
Warranty: One Year
EVS-V
Drive Speed: Electric / Variable Speed
Engine Power: 1,5 Kw
Air Output effective: Approx 36 000m3 / h
Engine: 230V / 50Hz
Material of Housing & Blade: Aluminium
Number of blade: 8
Tilt Angle: +35° / -20°
Dimension (w x h x d): 51 x 55 x 48 cm
Autonomy Time: 24H With electric powered
Weight: 30 Kg
Warranty: One Year
Advantages
– Easy to set up
– The lightest and the most compact of its category
– The design makes the blower easy to carry and lift
– Very easy to store in any type of vehicle
– Large protective shroud
POWER
– High-pressure ventilation fan
– New design of the blade with more power out-put
– Extended inclination range for an optimum approaching flow 2 option of single speed and variable speed fan
ERGONOMICS
– Efficient and lightweight to carry with one person only
– Quick mechanism tilt by foot to ease the operation
– Versatile and innovative grip option for easy handling
– Fit to almost power source, generator, truck, and other power source
QUALITY
– Reliable gasoline and electric motor
– Selected and high quality material
To ensure the delivery of efficiency, power and autonomous in most case scenario, with the electric power it can be much more practical without any smoke pollution or refueling gazoline, with selected fore proof material sure it will be the best to fight smoke during rescue.
Material of fan: The fan shroud is made of aluminum 8 blades in total with special design.
Comparison advantage: Compared to all other competitor fans in the same class we offer 2 option of the fans, that can be used, the option are single speed and variable speed, this fan model is the most compact in size and weight and more flexible on the tilt angle of +35° / -20° which have wide angle of tilt compare to other’s.
Engine: With the new model of EVS Electric power ventilator we use 230V / 50Hz engine that has the perfect power to accomodate our new blade design to create powerfull output, this electricventilator are created to manage the utility needs for 24H running ventilator, and design to fit on any electric plug either in generator or fire truck and nearest power source.
