Vibraphone ASB9

Electronic search device to find the victims buried underground after a natural disaster

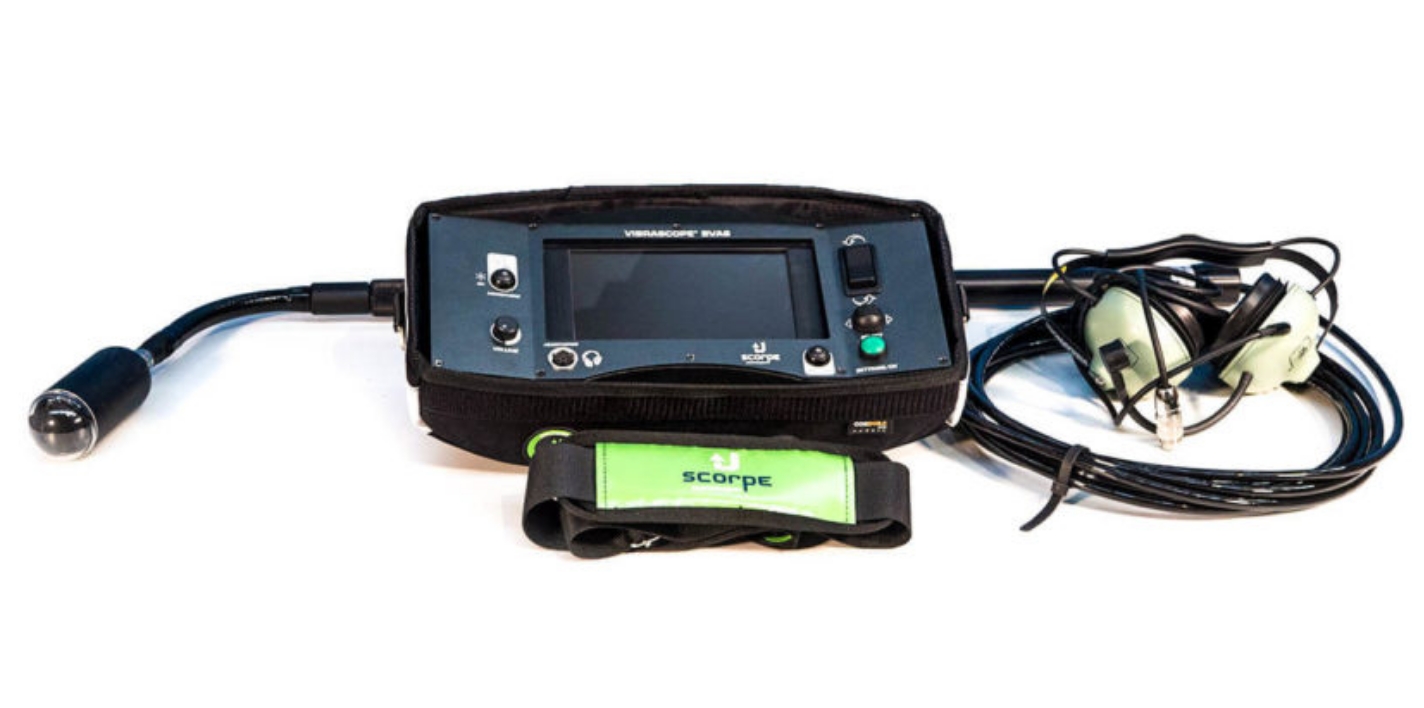

Scorpe Technologies - Vibraphone ASB9
ASB9
1 / 2
  • Scorpe Technologies - Vibraphone ASB9
  • ASB9
Description

Allows victims to be located under the rubble and to communicate with them thanks to the microphone connected to the case

1 control box (IP54) with bar-graph for adjustment and 3 frequency filters “high pass and low pass and pass band” infinitely variable, filters activated by F1 or F2 key (the chosen frequency is infinitely variable using the + and – keys)

– Filter 1: ‘High pass’ filter, significantly reduces all frequencies below its adjustment point, which may be between 50Hz and 5 kHz which correspond respectively to the low and the high points of the scale. It eliminates bass sounds such as lorry movements, dull noises, etc…

– Filter 2: ‘Low pass’ filter, significantly reduces all frequencies above the cutoff frequency

– Filter 3: ‘Pass band’ filter, significantly reduces low and high frequencies on either side of its tuning point. It filters an incoming signal

2 ultra-high sensitivity vibration sensors with 8m of cable
1 sound sensor incorporating a loudspeaker, with 8m of cable
1 stereo head-set with microphone

Characteristics

OPERATING TEMPERATURE: 14°F to 140°F (-10°C to +60°C)
STORAGE TEMPERATURE: -40°F to 158°F (-40°C to +70°C)
CHARGING TIME: 4 hours
AUTONOMY:  4 to 6 hours
TOTAL WEIGHT (with transport case):  21.16 lbs (9.6 kg)
DIMENSIONS (L X W X H):  21.65″ x 13.78″ x 9.45″ (550 x 350 x 240 mm)

Advantages

– Easily and efficiently locate victims under rubble thanks to ultra-sensitive sensors
– Touch screen with high brightness
– 1 IP54 box with bar graph for easy adjustment
– 3 frequency filters: «high pass» / «low pass» / «band pass»- 2 ultra
– high sensitivity vibration sensors with 8m cable
– 1 sound sensor incorporating a loudspeaker with 8m cable
– 1 stereo headset with microphone
– 1 battery pack
– 1 mains charger 100-240V AC 50-60Hz / 18V 1,65A
– 1 cigarette lighter type charger with cable for use from a vehicle
– 1 cordura carrying case with straps
– 1 impact-proof transport case
– Recording on SD card until 22 hours (storage capacity : 4 GB)

Call us for more informations
