Description

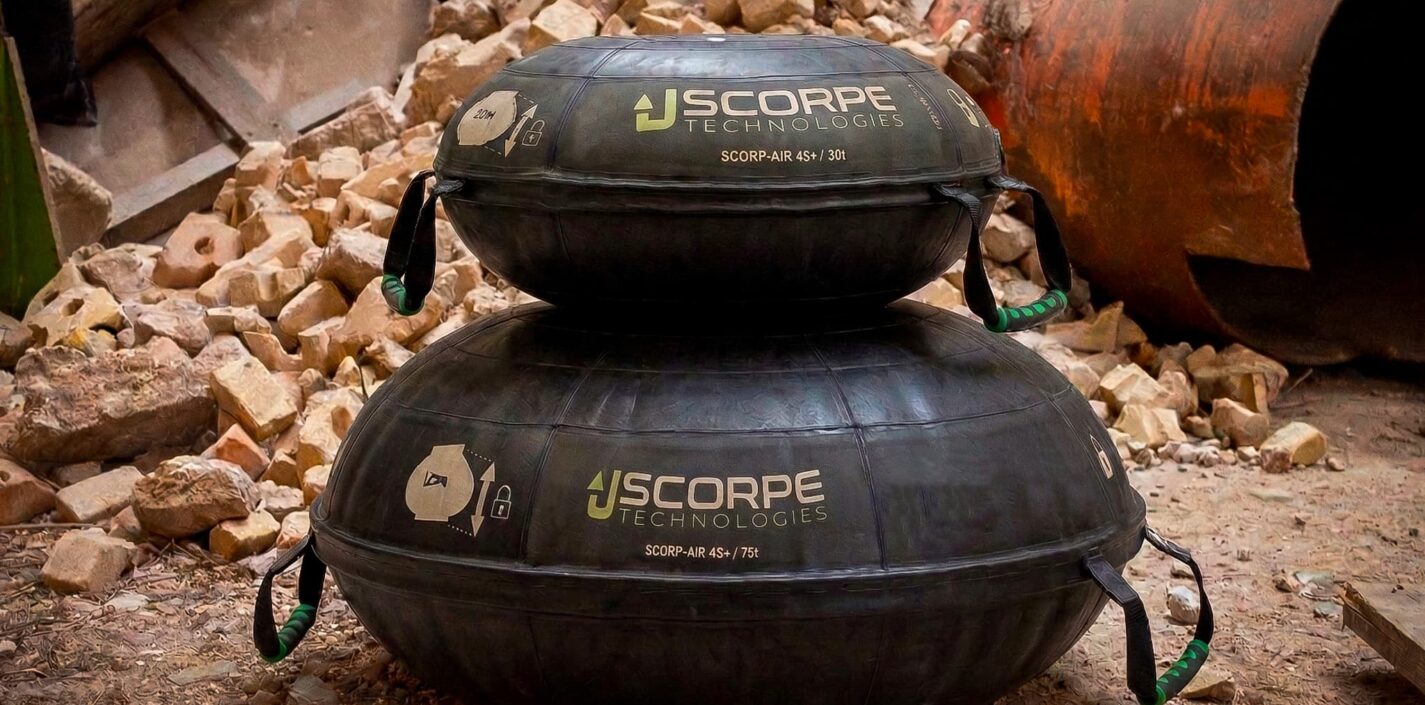

The range of SCORP’AIR 4S lifting bags designed by Scorpe combines several essential advantages in relief operations such as USAR, road rescue, and any lifting operation.
They offer many advantages: stability, great lifting capacity, low thickness for easy insertion in tight spaces, thin and rigid for easy storage, stackable and quick to use thanks to an ingenious connecting plate.
These lifting bags use a working pressure of up to 10 bar.
They have an octagonal shape in order to have maximum stroke and strength.
Next-Generation Power for Professional LiftingDiscover Scorpair 4S+, lifting technology designed for the most demanding operations. Lighter, more intuitive and more powerful, this next-generation system sets new standards for efficiency and safety in the field.
With SCORPE, you benefit from a unique combination:the compact lifting power of lifting bags combined with exceptional lifting height. This synergy creates an extremely versatile solution, capable of adapting precisely to every situation while harnessing the full power of a modern 12-bar system.
Built for action, Scorpair 4S+ simplifies every operation. Thanks to its tool-free connection technology, two or more bags can be assembled in just a few seconds, ensuring fast and efficient deployment, even in the most challenging environments.
Performance goes even further. Each bag integrates a reinforced load plate, providing maximum stability and high lifting capacity throughout the entire operation. This robust design also allows point loads and objects with sharp or pointed surfaces to be lifted without the need for additional adapters.
Performance. Reliability. Flexibility.
With Scorpair 4S+, you have a system engineered to meet the demands of professionals and optimize every lifting operation.
Characteristics
| Reference | Diameter (cm/inch) | Thickness (mm/inch) | Max. Weight Capacity (ton/US ton) | End. Lifting Capacity (ton/US ton) | Insertion Height (cm/inch) | Max. Inflated Height (cm/inch) | Working Pressure (bar/psi) | Weight (kg/lbs) | Air volume at 12 bar (litre/ft³) |
|---|---|---|---|---|---|---|---|---|---|
| 30T | 56,5 / 22,2 | 68 / 2,67 | 30 / 33 | 7 / 7,7 | 70 / 2,7 | 27 / 10,6 | 12 / 174 | 15,5 / 34,17 | 328 / 11,58 |
| 75T | 89 / 35 | 68 / 2,67 | 75 / 82,7 | 12 / 13,2 | 70 / 2,7 | 43,5 / 17,1 | 12 / 174 | 26 / 57,32 | 1269 / 44,81 |
Advantages
– 3 cushion sizes available from 25 to 132 tons and fitting on the edge for optimal insertion of the lifting bag.
– These 3 lifting bags can be stacked and connected thanks to a system of connecting plates, without any additional tools.
– Low insertion thickness for easy entry into tight spaces.
– Increased stability thanks to their octagonal shape.
– Max pressure of 10 bar, safety factor 4/1 and in accordance with EN13731.
– Installation requires no tools.
– SBR material for high abrasion resistance and increased durability.
– Does not require a suitcase for storage in your vehicles.
