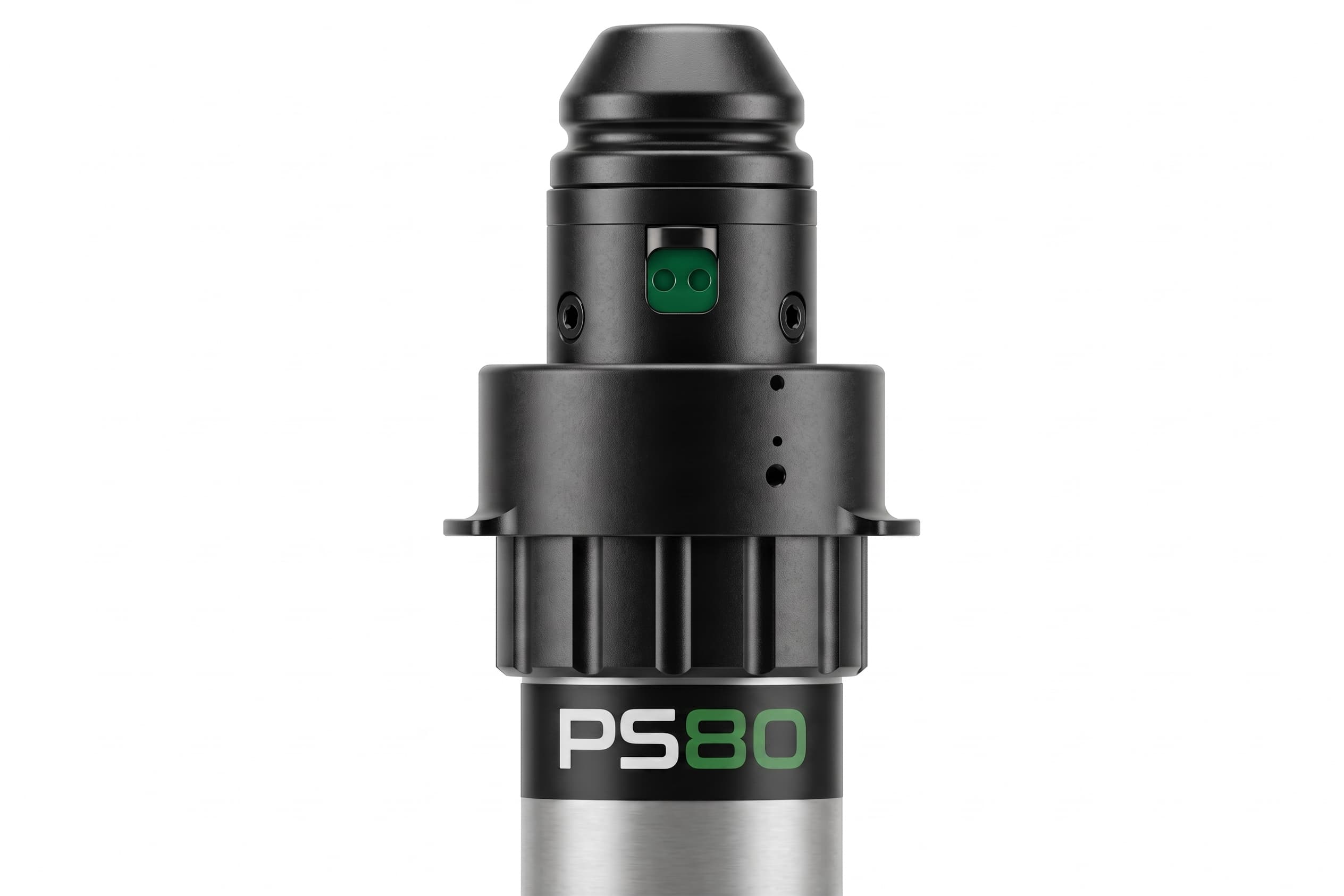

The Airacles PS80 heavy shoring struts is a versatile and reliable prop within the Airacles range. Engineered from high-strength aluminium, it strikes the right balance between durability and ease of handling at just 8 kg. Its 44 cm stroke allows it to extend from 83 cm folded to a maximum of 127 cm deployed, while its 90 mm diameter, expanded to 134 mm with the support ring, provides a stable footing even under the heaviest loads.
To meet the demands of the most challenging operations, the PS80 is compatible with three separately available extensions: the EX30 (30 cm, 2 kg), EX60 (60 cm, 2.8 kg) and EX90 (90 cm, 3.7 kg). Each one broadens its reach to suit any operational configuration, from shoring up a weakened structure during a USAR operation to stabilising a heavy vehicle prior to victim extraction.
To meet the demands of the most challenging operations, the PS80 is compatible with three separately available extensions: the EX30 (30 cm, 2 kg), EX60 (60 cm, 2.8 kg) and EX90 (90 cm, 3.7 kg). Each one broadens its reach to suit any operational configuration, from shoring up a weakened structure during a USAR operation to stabilising a heavy vehicle prior to victim extraction.
Characteristics
FOLDED LENGTH: 83 cm
MAXIMUM LENGTH: 127 cm
STROKE: 44cm
DIAMETER: 90mm / 134 mm with the ring
WEIGHT: 8 kg
MATERIALS: ALUMINIUM
3 EXTENSIONS AVAILABLE: EX30, EX60, EX90
OPERATING PRESSURE: 12 bars
MATERIALS: HIGH-STRENGTH ALUMINUM ALLOY
Advantages
100% French manufacturing: a guarantee of quality, reliability, and industrial expertise, with a design developed to meet the demanding conditions of field operations and supported by responsive technical service.
- Remote unlocking system via control box: operators can remain at a safe distance from the load during the most critical and hazardous phase of the operation, significantly improving team safety.
- Wide range of sizes and extension capacities: thanks to the different struts and extension accessories available, the system can adapt to almost any operational scenario encountered in the field.
- Quick-lock clip system: fast, simple, and intuitive assembly allowing valuable time savings during operations and immediate deployment.
- Designed by firefighters, for firefighters: every component has been developed for intuitive use in emergency situations. Minimal questioning regarding assembly direction, connections, or system compatibility. Much easier and faster to use than some competing systems that require additional training and setup understanding.
- High mechanical resistance: engineered to withstand heavy loads and extreme conditions while ensuring maximum reliability in demanding situations.
- Color-coded stroke and end-of-stroke markings: instant visual identification for faster, safer, and unambiguous operation in the field.

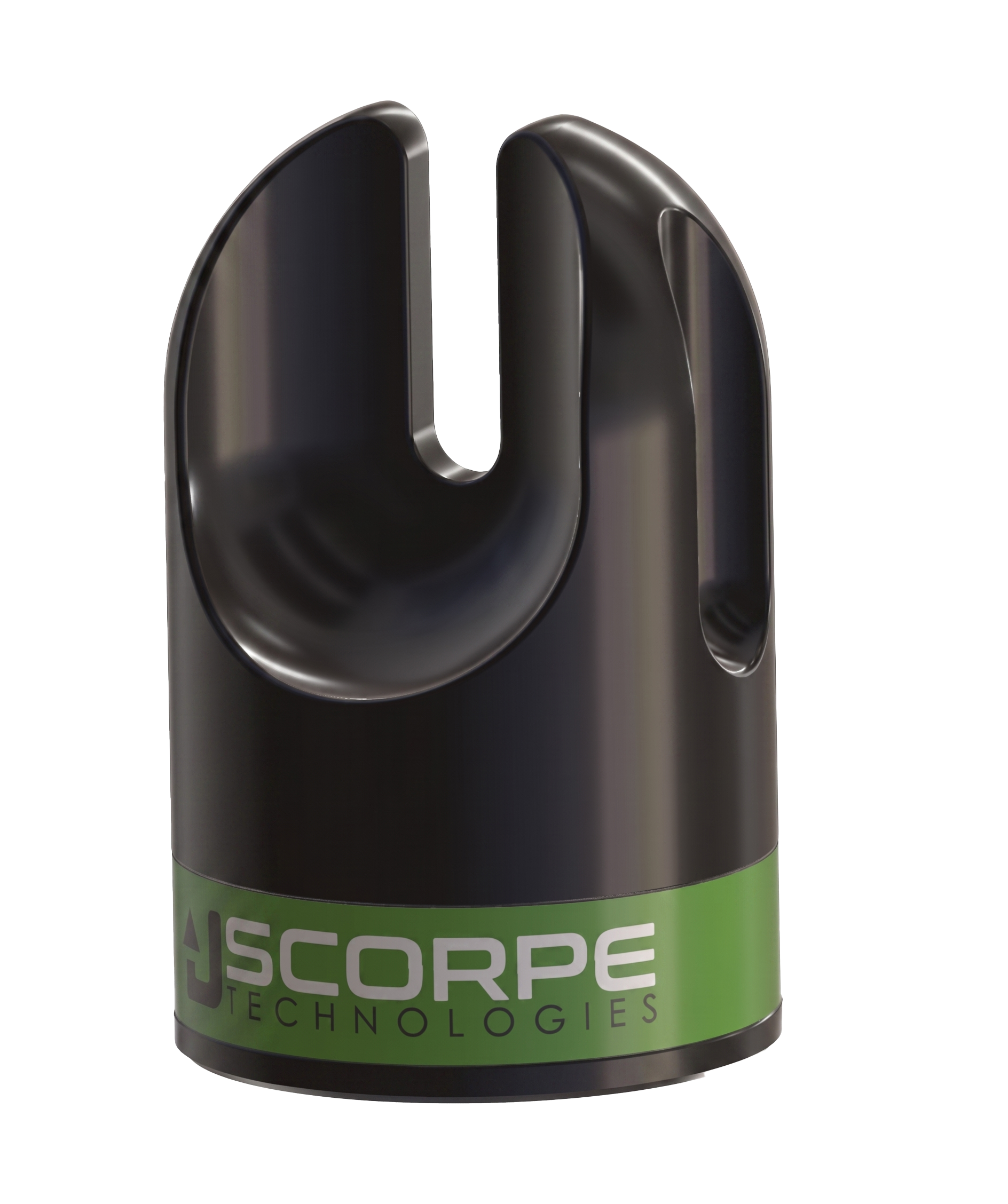

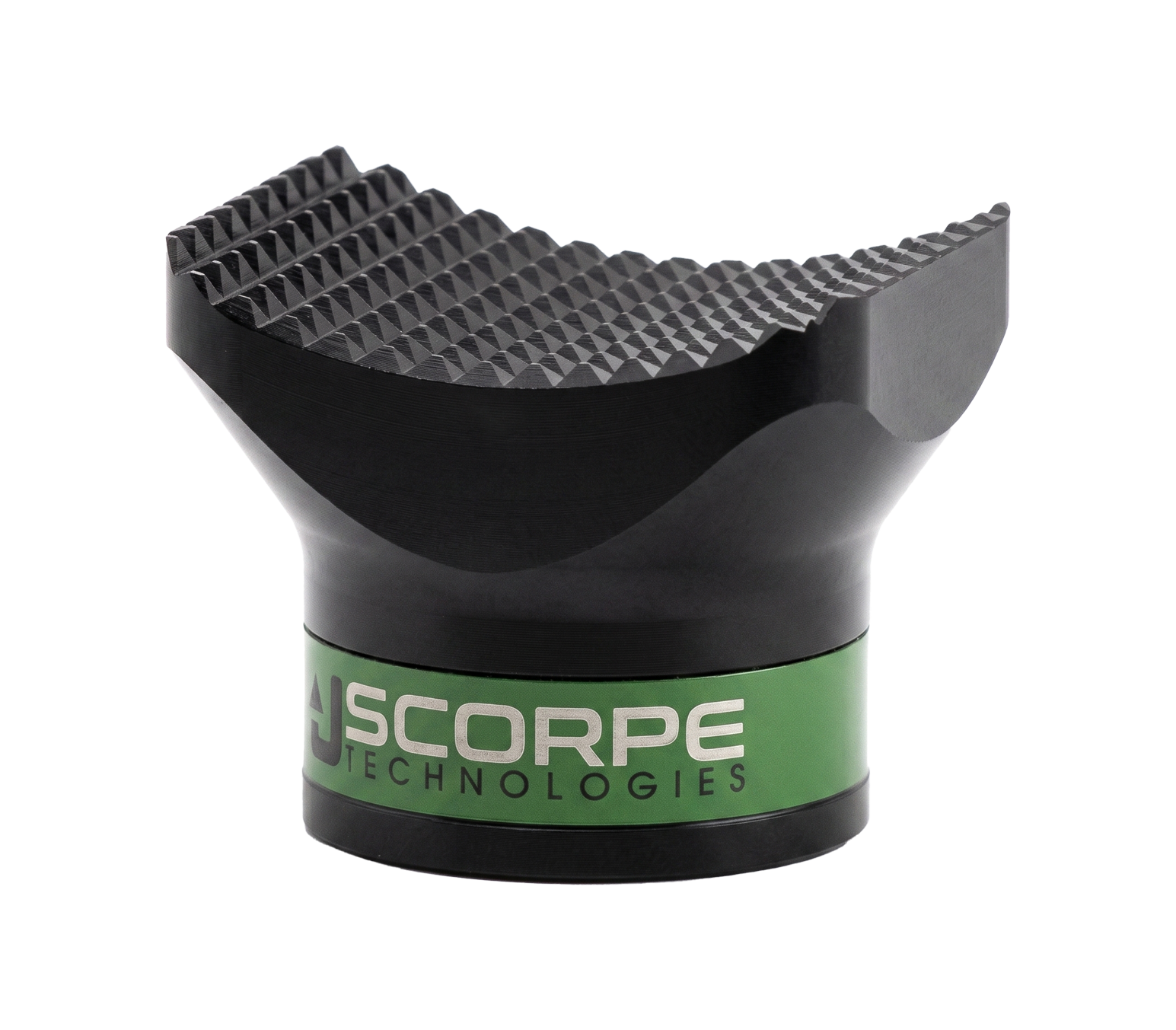

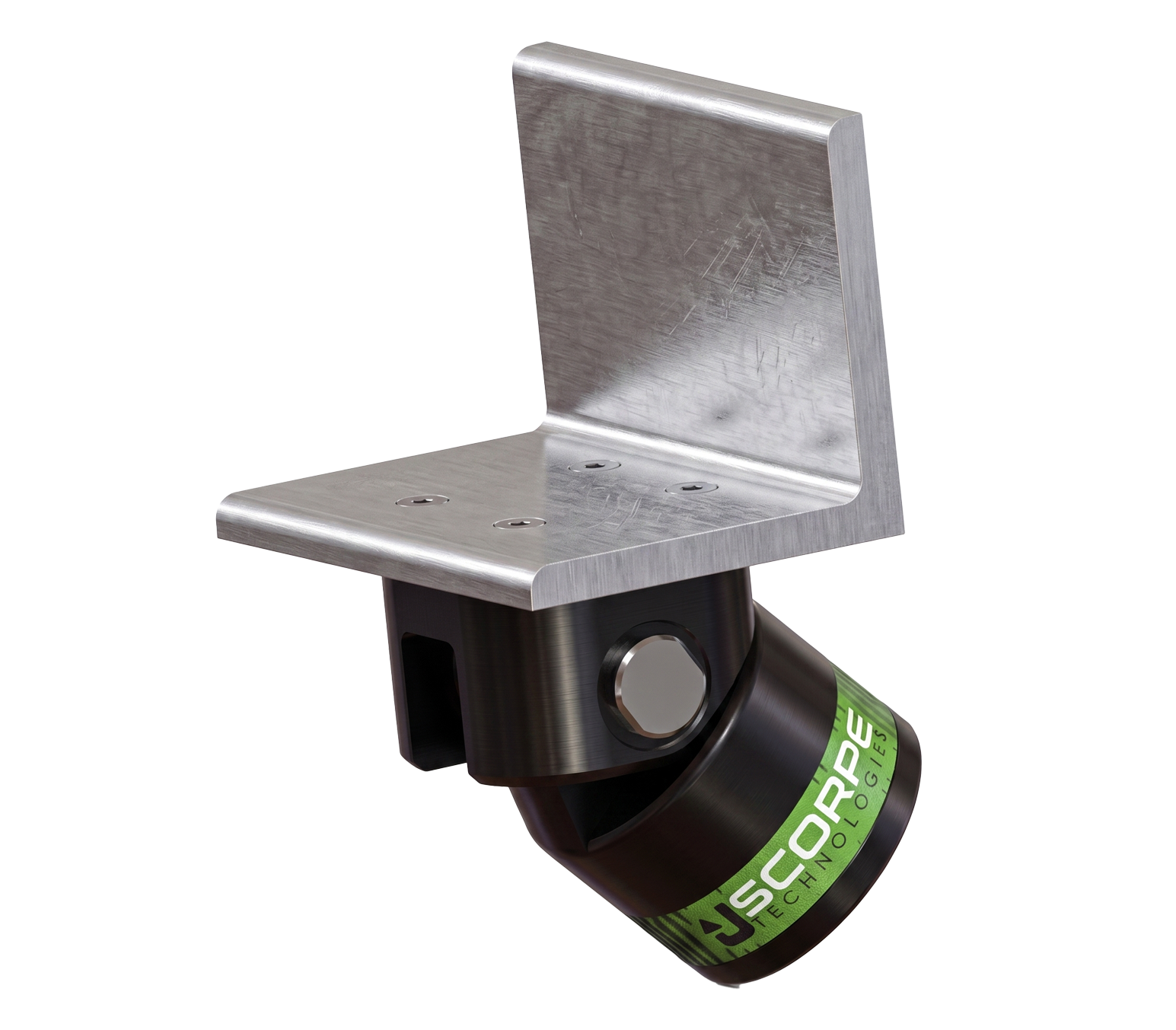

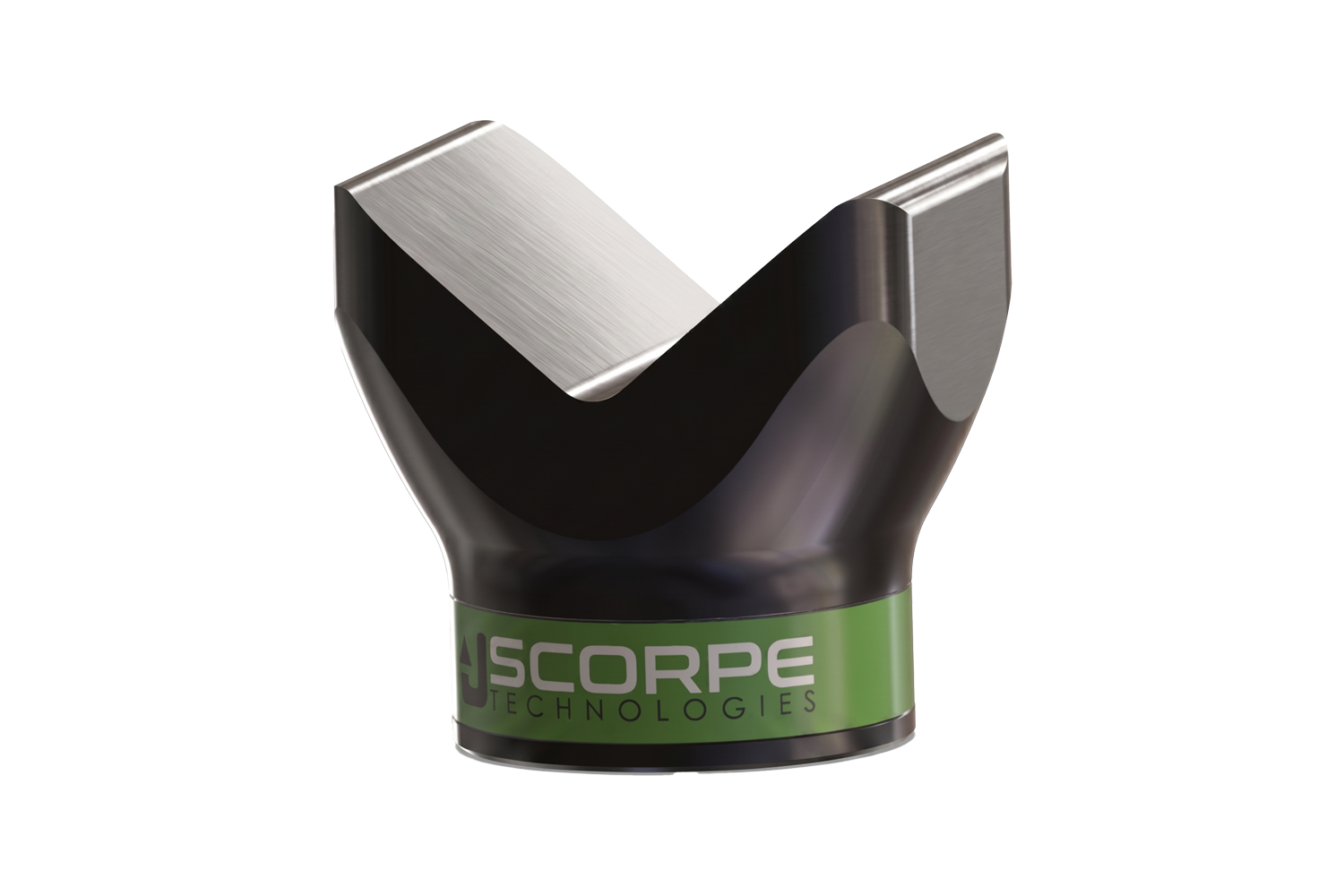

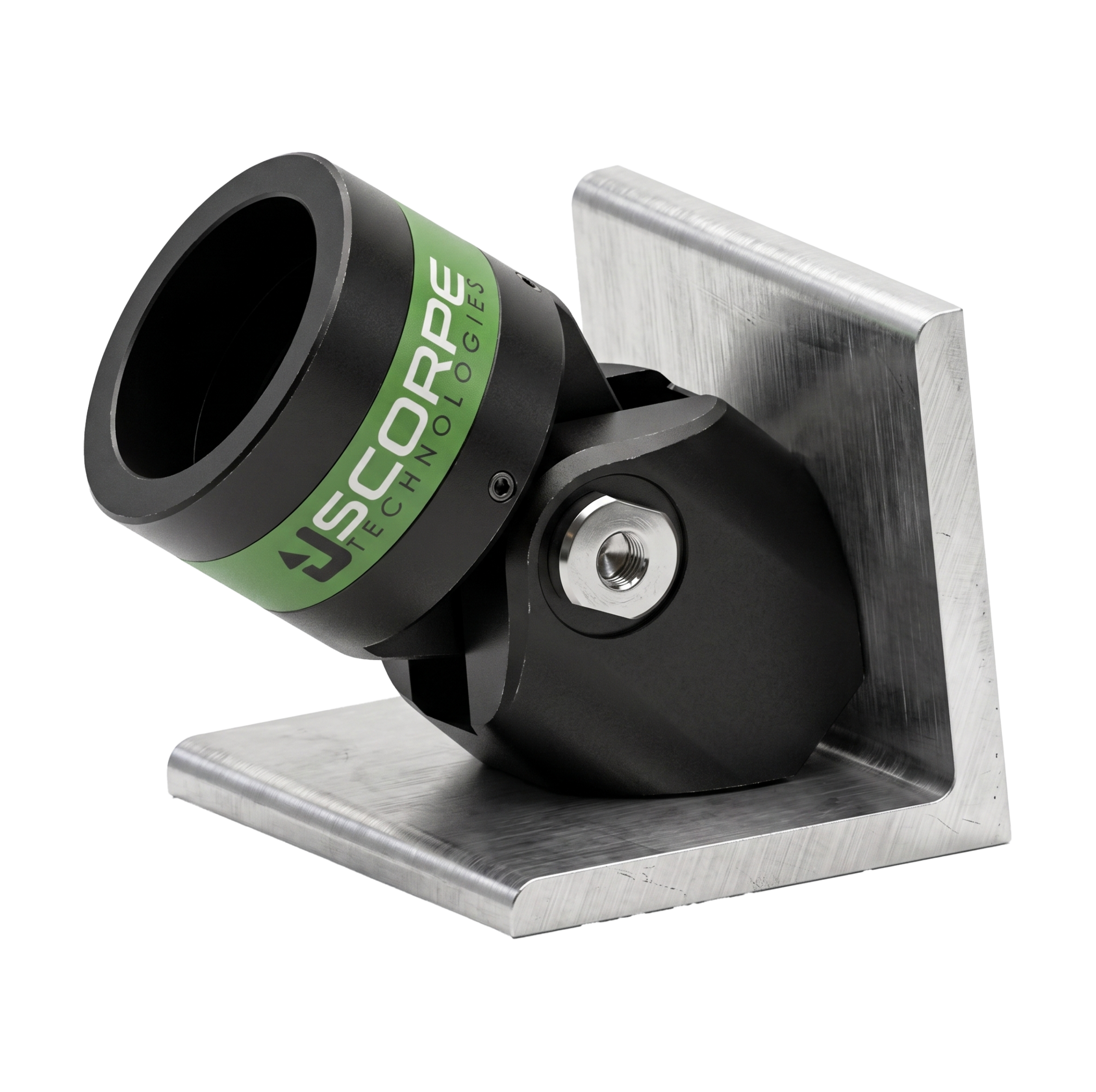

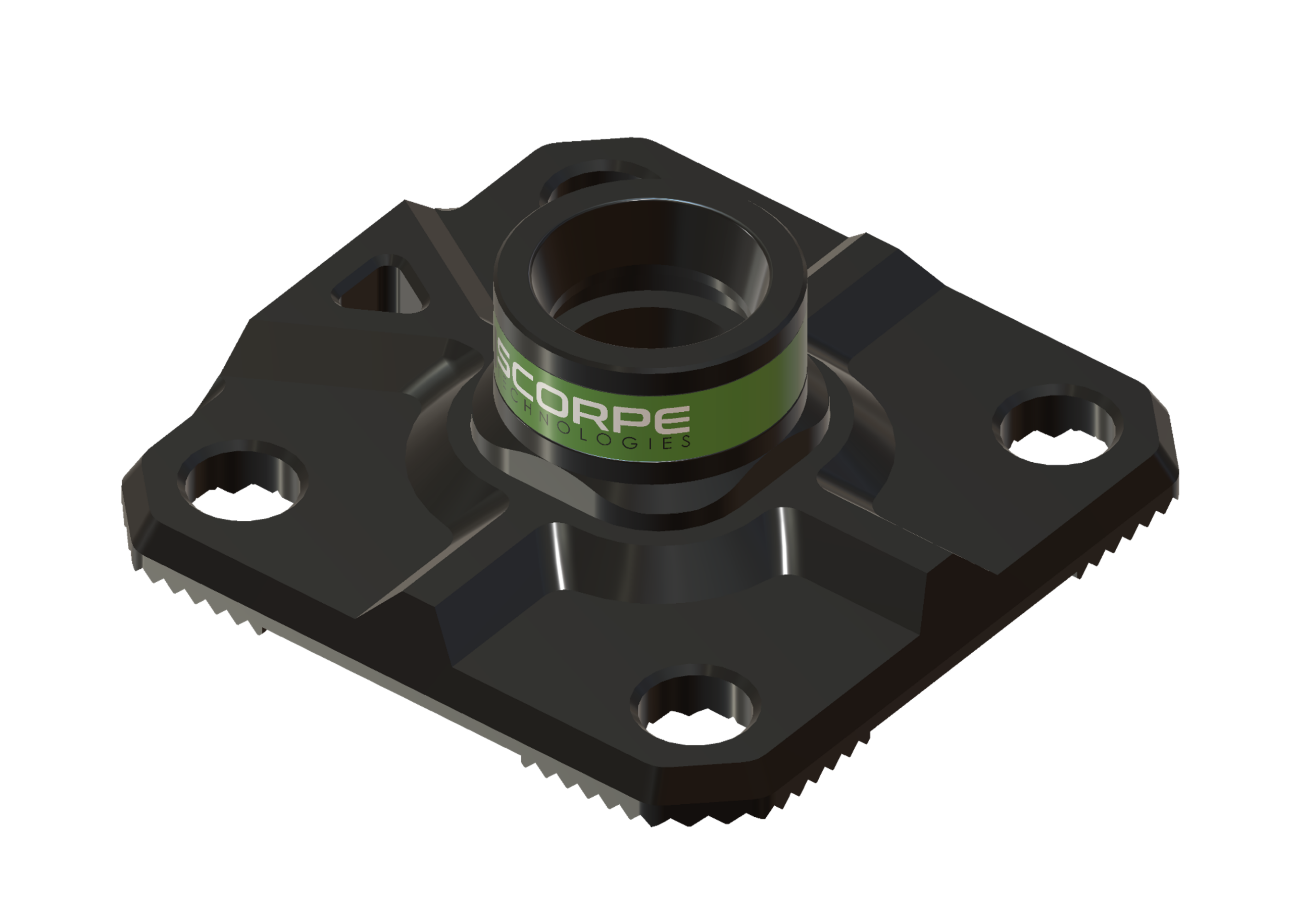

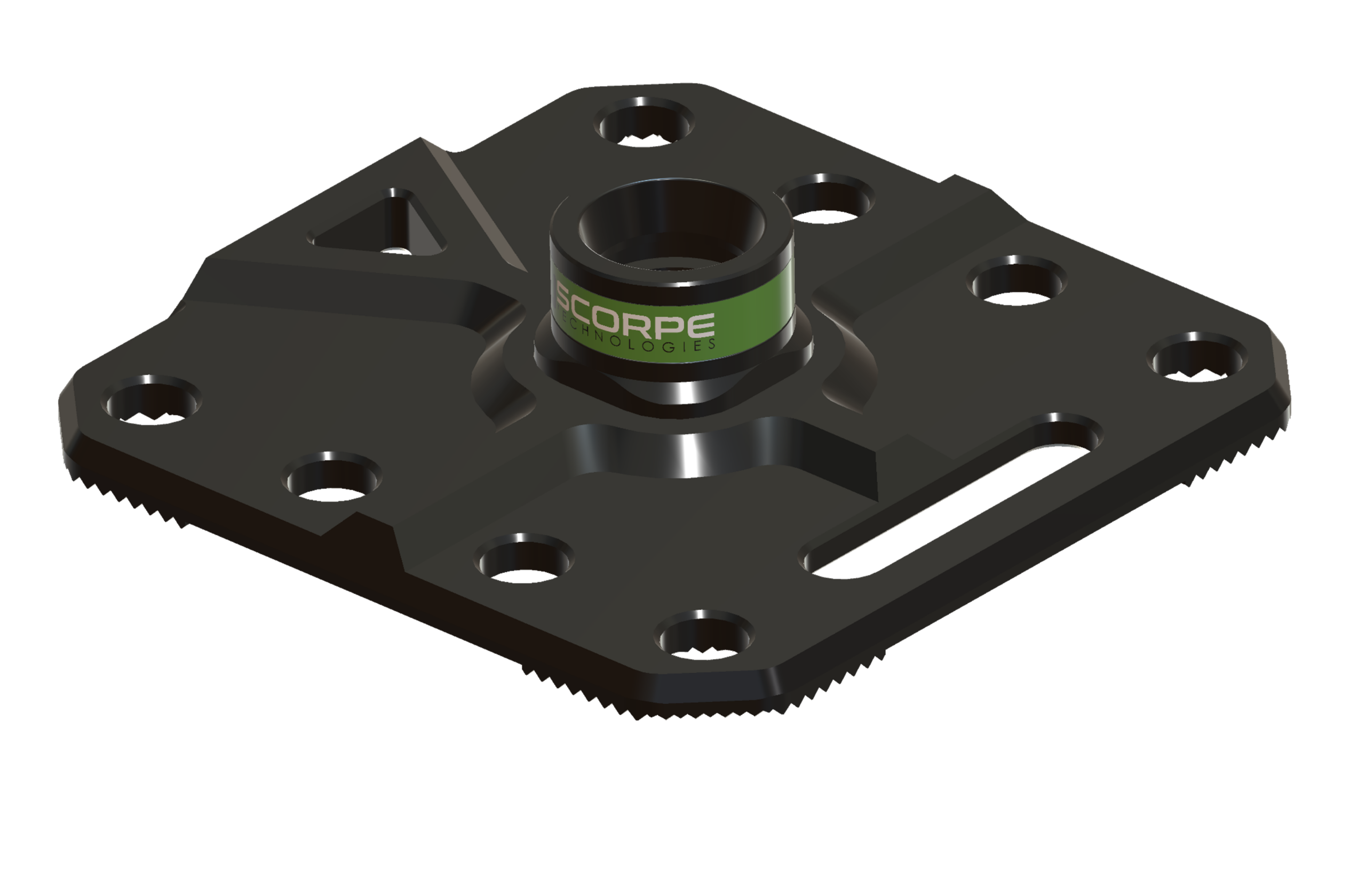

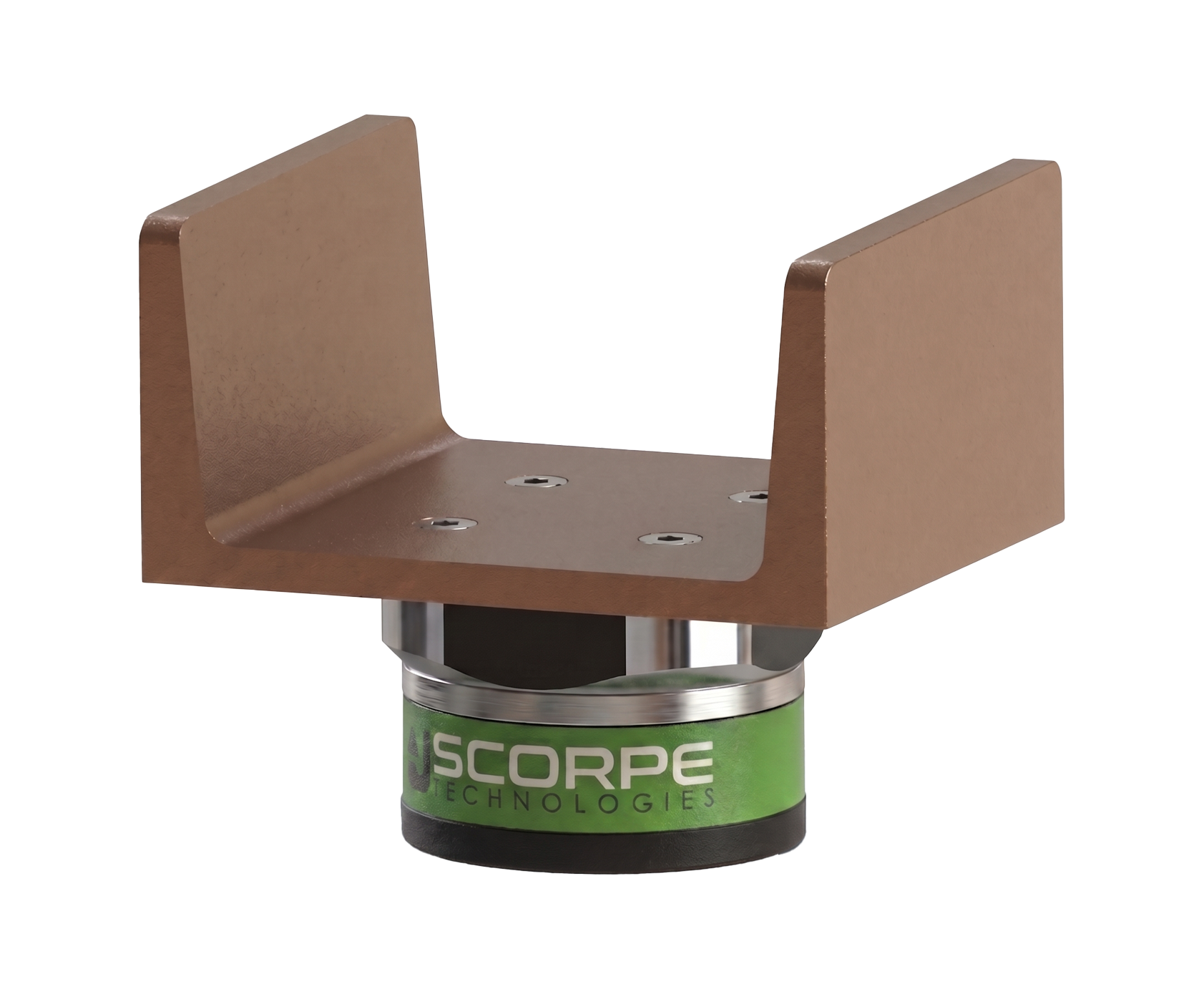

Accessories
