Description

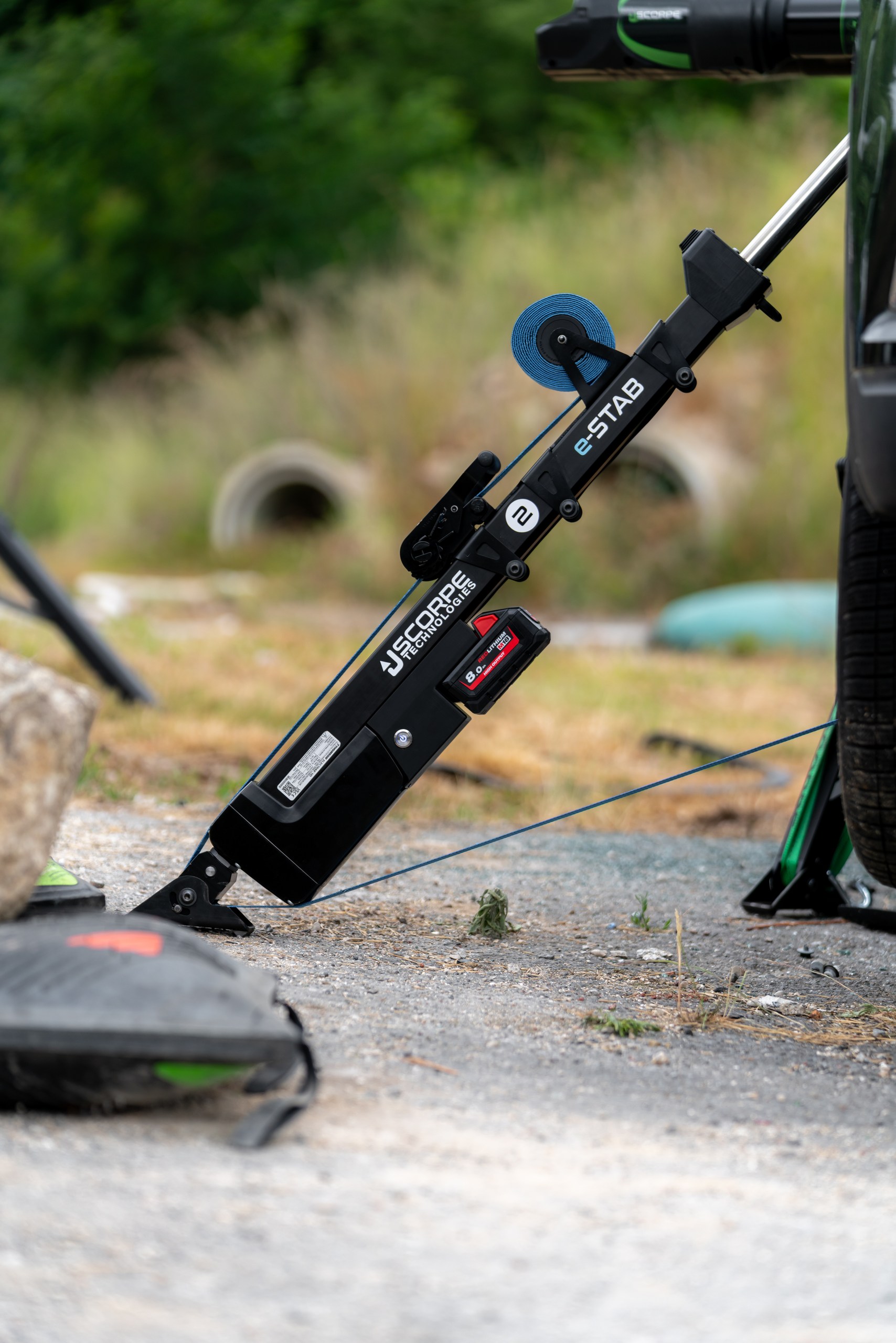

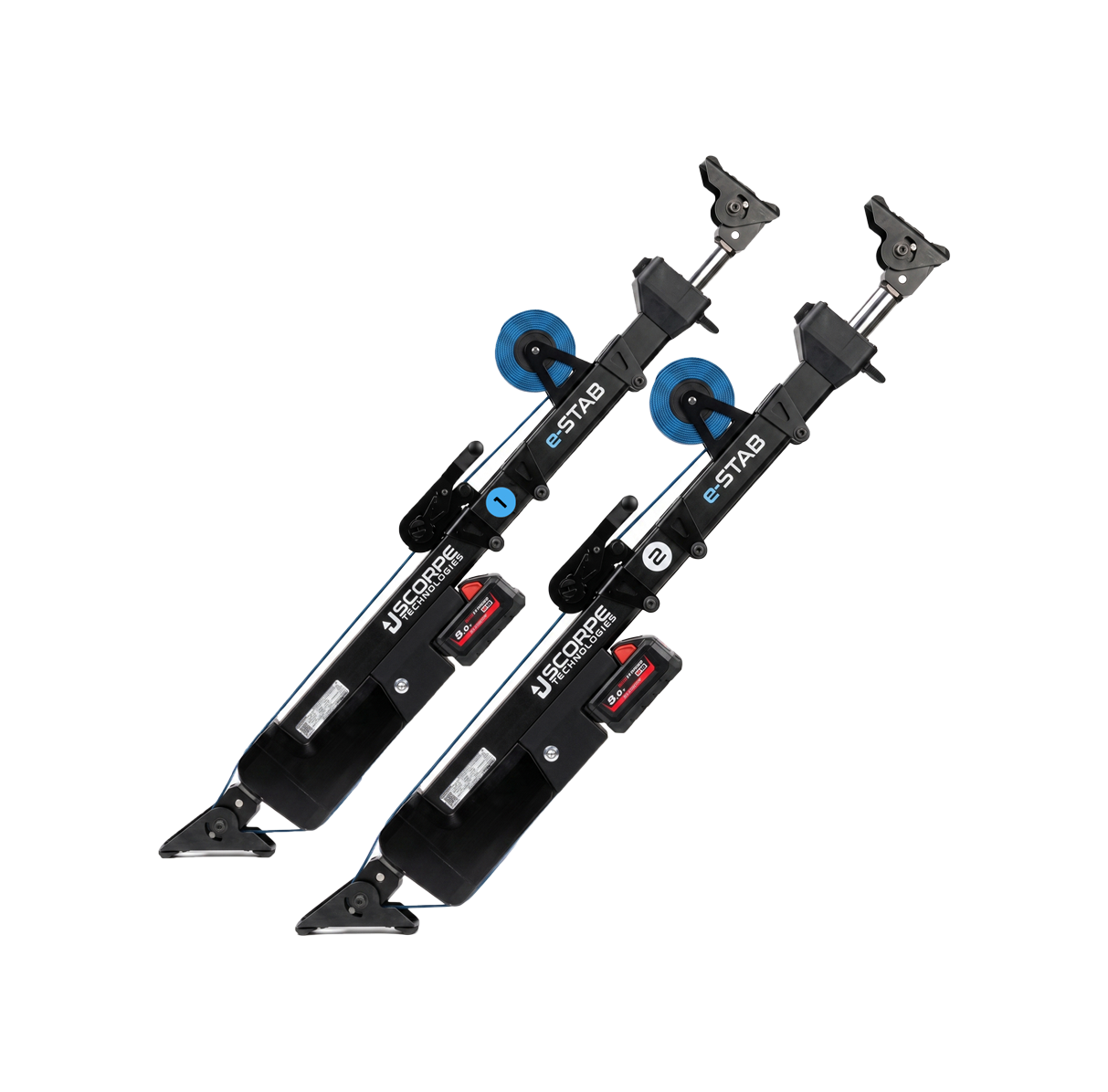

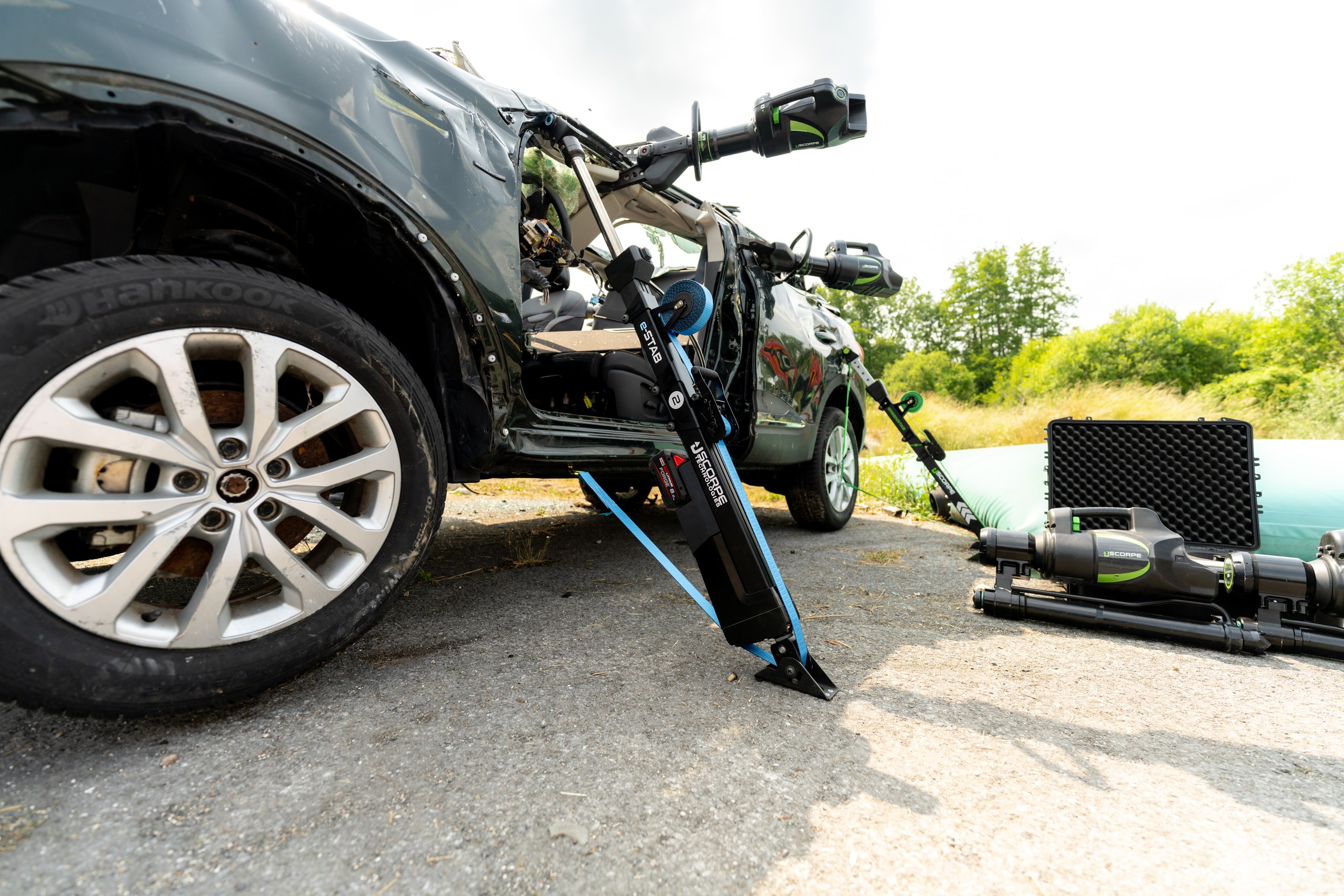

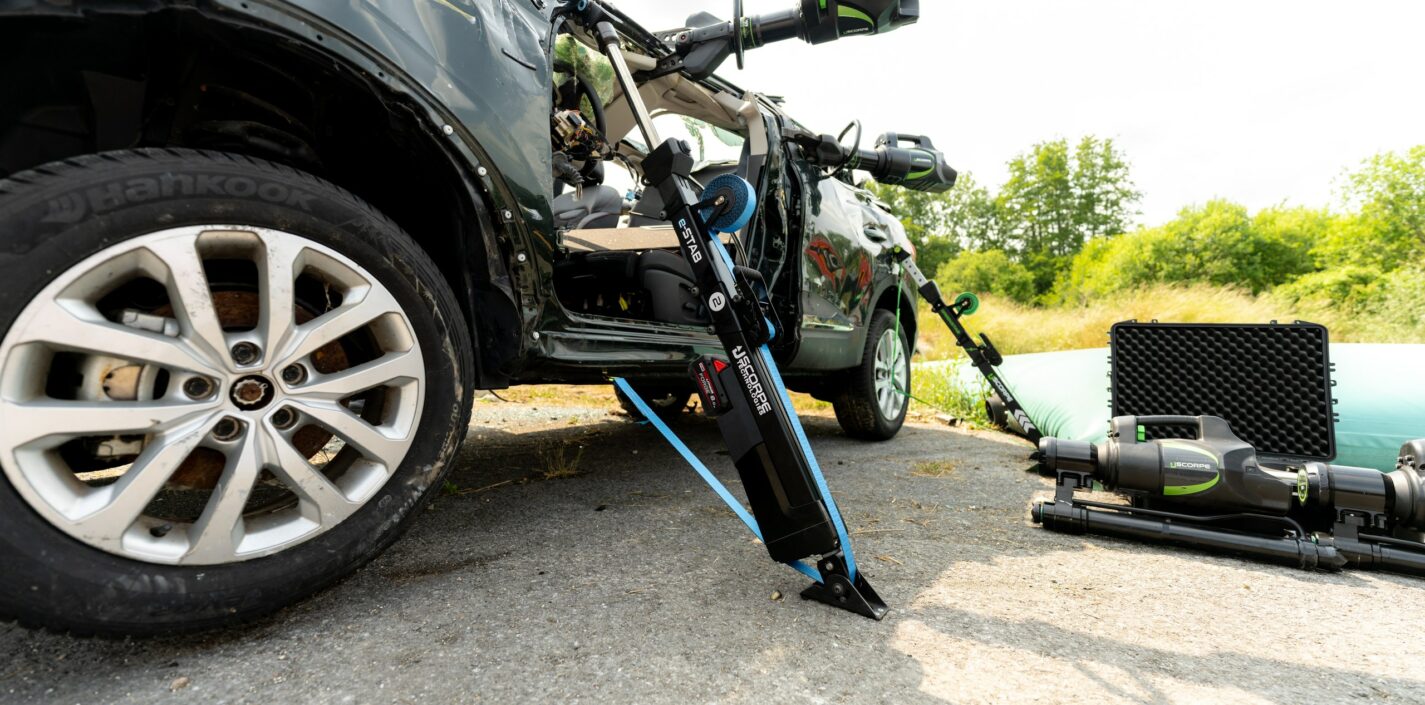

Hybrid Electric Rams – Controlled Lifting and Stabilization
Designed for demanding technical interventions, hybrid electric lifting and stabilization rams provide a powerful, precise, and versatile solution for securing and moving loads during rescue operations.Each ram is equipped with a high-performance electric ball screw system, ensuring strength, precision, and reliability during both lifting and stabilization phases.
This technology provides optimal control while significantly reducing operator effort.Engineered for field use, these rams are compatible with M18 batteries from Milwaukee Tool, as well as with the RAM accessory kit from Scorpe Technologies, offering great flexibility in equipment configuration.
Deployment can be performed directly on the ram using a toggle switch, or remotely via a wireless remote control, allowing safe operation from a distance. The remote control enables operators to control each ram individually or both simultaneously, ensuring maximum precision during lifting or stabilization operations.
To adapt to various operational configurations, each ram is equipped with two interchangeable heads as well as an anchoring plate, ensuring excellent stability and high versatility in use.
Power, precision, and safety: these hybrid electric rams are designed to simplify and secure lifting and stabilization operations in the field.
Characteristics
Dimensions : 250 x 90 x 1160 mm
Minimum Length : 1160 mm
Maximum Length : 1910 mm
Weight : 14kg (strut) / ~32kg (Kit)
Stroke : 750 mm
Static Load : 18 kN (1.8 t)
Dynamic Load : 10 kN (1 t)
